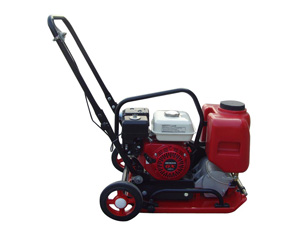

Plate Compactor VLD 1540: more compact design, suitable for macadam, gravel, or sandy surfaces, groove backfilling, able to compact along groundwork, walls and bridge foundations. Optional automatic water spraying system for hot asphalt treatment.


Features:
1.Folding handle, easy for cartage and storage.
2.Embedded wheels to facilitate transit.
3.Heavy duty incabloc to reduce the vibration on the handle and the engine.
4.Sealed pulley guard to keep the dust and sand out.
5.Standard load hook to facilitate lifting and transit in case needed.
6.Stable throttle control system for better power output.
7.More durable with specially made nodular cast iron backplane.
8. Internal valve with movable water tank, rust and erosion proof stainless steel watering system to guarantee the smooth water supply.
9.Vibration reduced handle for easier operation and less fatigue on the operator.

                          Model                  VLD1540
 Type of engine Robin, Yamaha, Kohler, or B&S available
Power (Horse Power) 5.5
Measurement of the backplane 40*58
Weight (kg) 82
Frequency (hz) 97
Excitation force (kilo newtor) 15

Maximum area of compaction ( square metres/ minute)

580
Maximum advance speed ( metre/ minute) 20
Maximum compaction depth (centimetre) 30
Dimension of the water tank ( litre) 15
