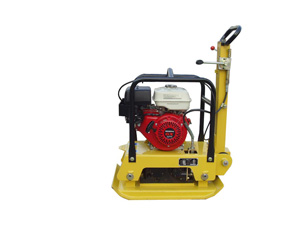

Reversible Plate Compactor VLD30: suitable for macadam, gravel, or sandy surfaces, groove backfilling, able to compact along groundwork, walls and bridge foundations. mechanical operation control and hydraulic pressure system guarantee the stability and efficiency of the machine and low cost on maintenance.Two way and powerful compaction.

Features:
1.Position control to ensure the operation within the reach.
2.General vibration reduction equipment to reduce the shake on the handle.
3.Heavy duty incabloc to reduce the vibration on the upper plate.
4.Durable steel backplane to prolong the service life and the open design reduces the gathering of dust.
5.Central lifting rod to facilitate loading and transit in case needed.
6.Stable throttle control system for better power output.
7.Optional wheels for the convenience of transit.
8.Mechanical and hydraulic pressure control system to ensure the more stable job for the machine to work both ways.

                       Model                 VLD30
 Type of engine Honda (Robin, Yamaha, Kohler, or B&S available)
Power (Horse Power) 9
Measurement of the backplane 45*70
Weight (kg) 160
Frequency (hz) 90
Excitation force (kilo newtor) 30
Maximum area of compaction ( square metres/ minute) 660
Maximum advance speed ( metre/ minute) 21
Maximum compaction depth (centimetre) 50
Dimension of the water tank ( litre) 12
